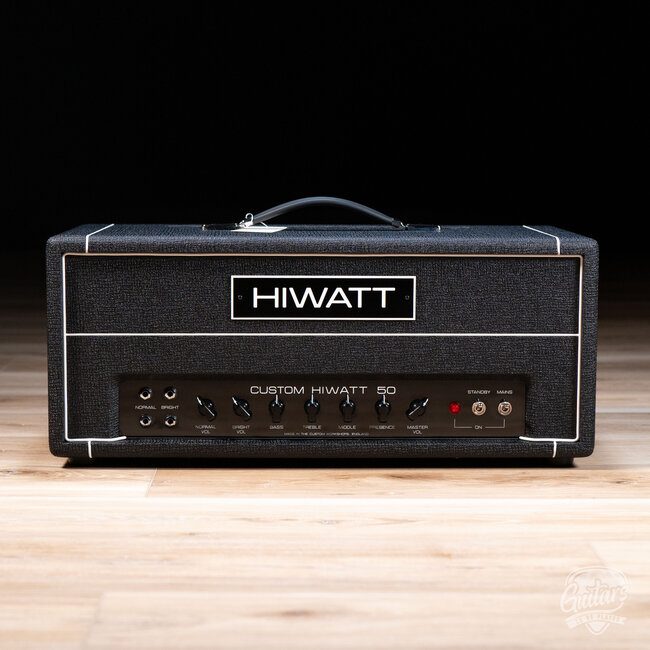

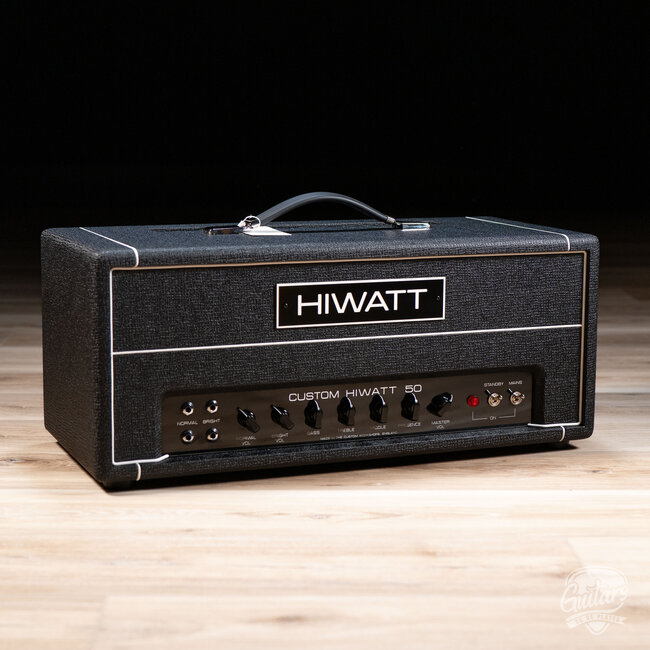

Hiwatt DR504 Custom 50 Handwired EL34 Amp Head (B-stock)

Information

B-stock w/ Full Warranty. We are an authorized Hiwatt dealer!

Like what you see? All photos are of the exact item you will receive. This amp was featured at the NAMM music trade show. It is in flawless condition and is covered by full Hiwatt warranty. It ships in original box with all original packaging and contents. B-stock in name only!

Legendary Hi-Headroom, crystal-clean tonal character, instantaneous response, sonic depth and detail have made this original Dave Reeve's circuit a recording and performance giant for more than 60 years. With half the power tubes of its big brother (the DR103), the DR504 offers the iconic Hiwatt tone while allowing to play on the edge of breakup at recording volume. The classic British sound trusted by musicians and engineers for generations.

FEATURES

— Faithfully hand-wired according to Dave Reeve's original late 60's circuit design.

— Hiwatt is the premier pedal platform prized for clarity and headroom. Presents pedals true to your sound — no effects loop required.

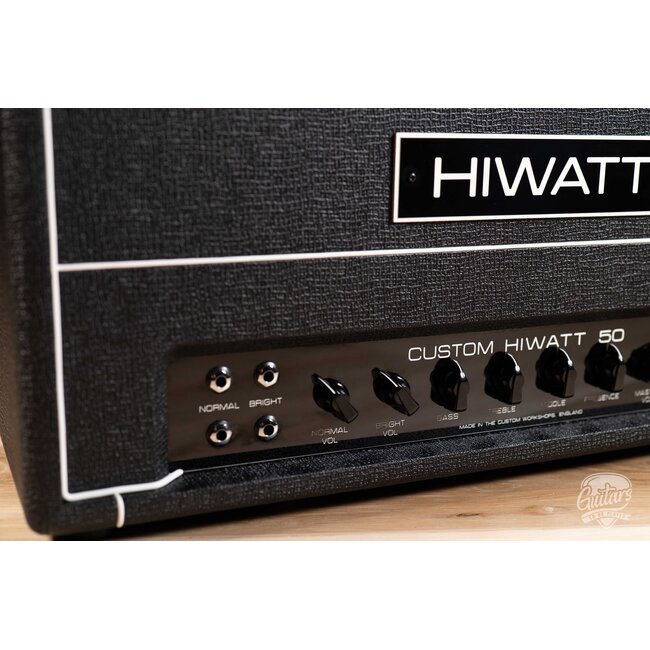

— Normal and Bright channels with independent High and Low impedance inputs for each channel. Versatile and intuitive, perfect for bringing life out of dark pickups or taming shrill high end in bright pickups.

— Link the two channels for extra punch and dynamic control of your EQ via the independent channel volumes. Unleash the ’jumped’ channel sound Hiwatt is famous for.

— All the clean Headroom you could want.

— AP or 'All Purpose' Amplifier. Historically used by the world's most influential artists on a wide range of instruments in the studio and on stage. Ideal for amplifying bass, keys, synthesizers, guitars and other full-range and acoustic instruments.

SPECS

Wattage — 50W

Channels — Normal, Bright

Inputs  —

     Normal Hi

     Normal Low

     Bright Hi

     Bright Low

Output — 2 x 1/4" Speaker Out

Preamp valves — 4 x ECC83 (12AX7)

Output valves — 2 x EL34

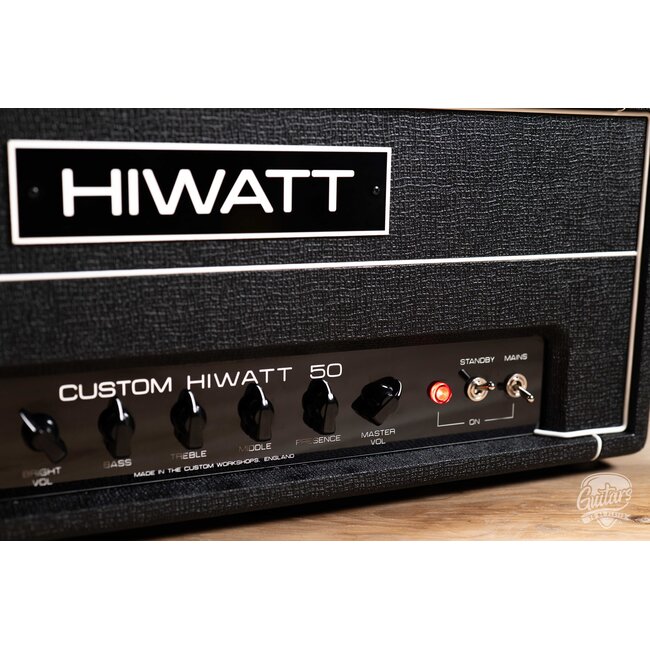

Controls —

     Normal Volume

     Bright Volume

     3-Band EQ shared by both channels — Bass, Treble, Middle

     Presence — Treble Boost shared by both channels

     Master Volume

     Standby — On/Off

     Mains — On/Off

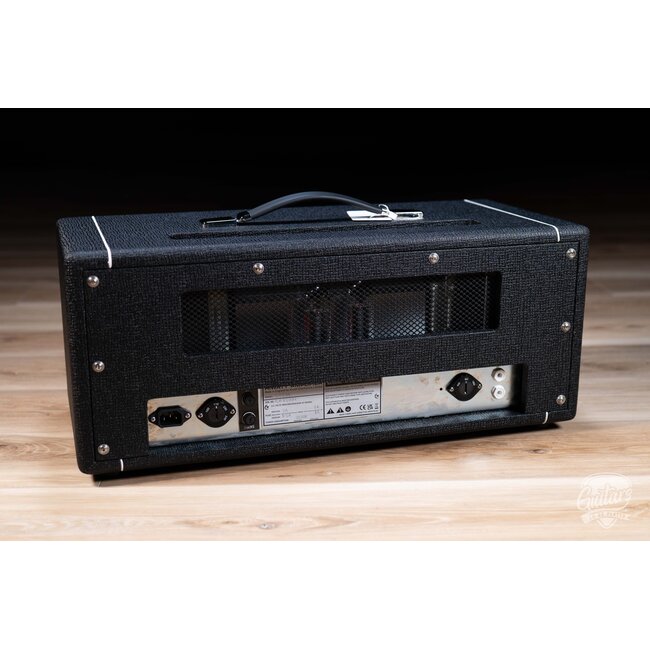

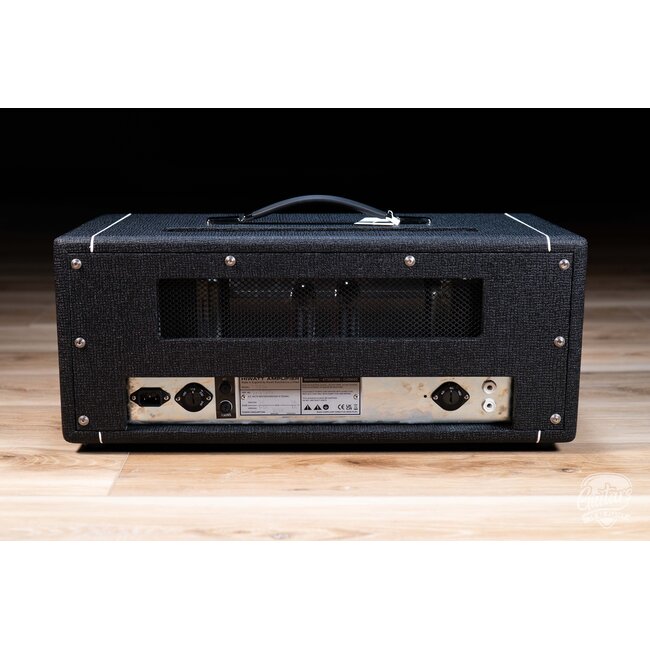

Impedance — Switchable using Impedance Selector on the rear panel — 4 Ω, 8 Ω, or 16 Ω

Road Ready — Rugged 18mm Birch-Ply Construction

Band Ready — 'Soak Tested' by our Custom Shop Technicians

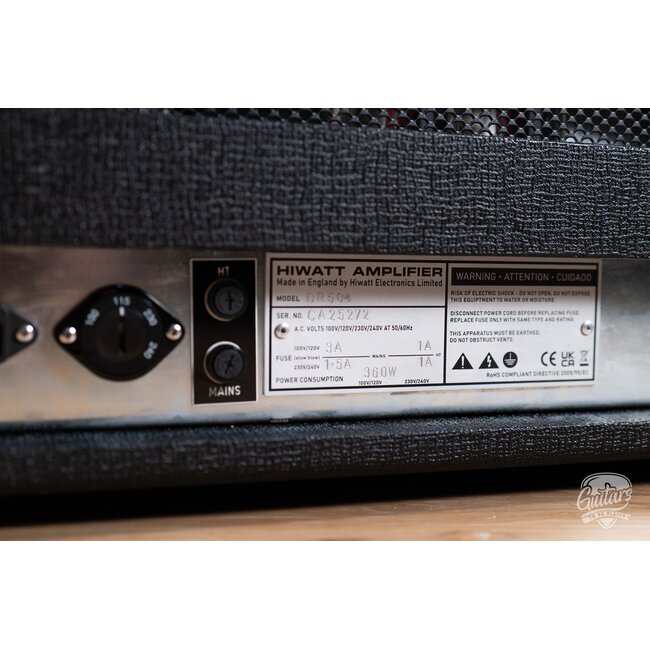

Touring Ready — World Voltage and Impedance Selectors

Based on Hiwatt's original circuit designed by Dave Reeves

Original Partridge spec English transformers

Meticulously hand-wired to Harry Joyce's exacting military standards

Proudly manufactured in the Hiwatt Custom Shop (England)
